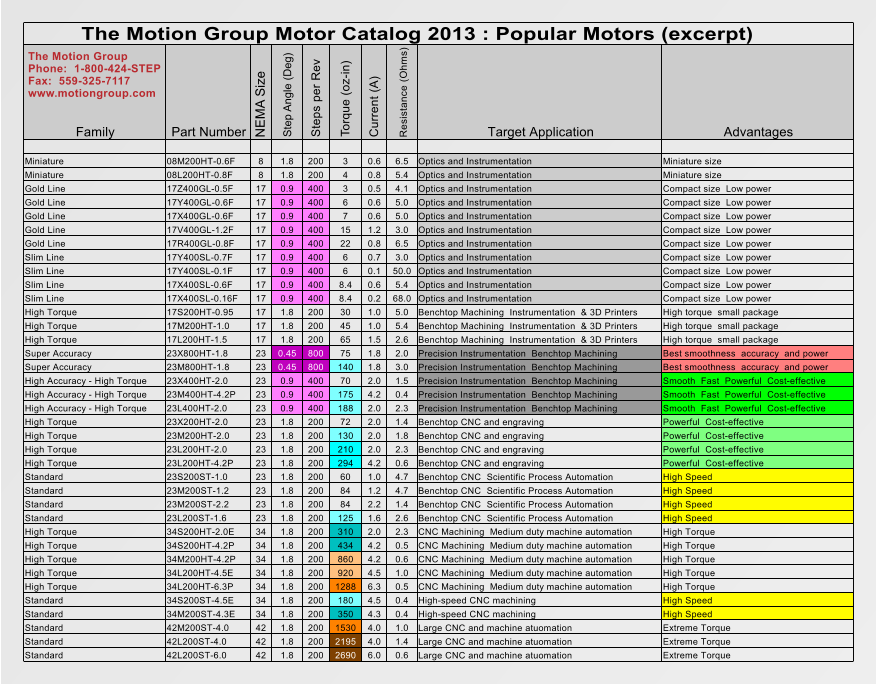

The Motion Group Motor Catalog 2013 : Popular Motors (excerpt) Family Part Number Target Application Advantages Miniature 08M200HT-0.6F 8 1.8 200 3 0.6 6.5 Optics and Instrumentation Miniature size Miniature 08L200HT-0.8F 8 1.8 200 4 0.8 5.4 Optics and Instrumentation Miniature size Gold Line 17Z400GL-0.5F 17 0.9 400 3 0.5 4.1 Optics and Instrumentation Compact size Low power Gold Line 17Y400GL-0.6F 17 0.9 400 6 0.6 5.0 Optics and Instrumentation Compact size Low power Gold Line 17X400GL-0.6F 17 0.9 400 7 0.6 5.0 Optics and Instrumentation Compact size Low power Gold Line 17V400GL-1.2F 17 0.9 400 15 1.2 3.0 Optics and Instrumentation Compact size Low power Gold Line 17R400GL-0.8F 17 0.9 400 22 0.8 6.5 Optics and Instrumentation Compact size Low power Slim Line 17Y400SL-0.7F 17 0.9 400 6 0.7 3.0 Optics and Instrumentation Compact size Low power Slim Line 17Y400SL-0.1F 17 0.9 400 6 0.1 50.0 Optics and Instrumentation Compact size Low power Slim Line 17X400SL-0.6F 17 0.9 400 8.4 0.6 5.4 Optics and Instrumentation Compact size Low power Slim Line 17X400SL-0.16F 17 0.9 400 8.4 0.2 68.0 Optics and Instrumentation Compact size Low power High Torque 17S200HT-0.95 17 1.8 200 30 1.0 5.0 High torque small package High Torque 17M200HT-1.0 17 1.8 200 45 1.0 5.4 High torque small package High Torque 17L200HT-1.5 17 1.8 200 65 1.5 2.6 High torque small package Super Accuracy 23X800HT-1.8 23 0.45 800 75 1.8 2.0 Best smoothness accuracy and power Super Accuracy 23M800HT-1.8 23 0.45 800 140 1.8 3.0 Best smoothness accuracy and power High Accuracy - High Torque 23X400HT-2.0 23 0.9 400 70 2.0 1.5 Smooth Fast Powerful Cost-effective High Accuracy - High Torque 23M400HT-4.2P 23 0.9 400 175 4.2 0.4 Smooth Fast Powerful Cost-effective High Accuracy - High Torque 23L400HT-2.0 23 0.9 400 188 2.0 2.3 Smooth Fast Powerful Cost-effective High Torque 23X200HT-2.0 23 1.8 200 72 2.0 1.4 Powerful Cost-effective High Torque 23M200HT-2.0 23 1.8 200 130 2.0 1.8 Powerful Cost-effective High Torque 23L200HT-2.0 23 1.8 200 210 2.0 2.3 Powerful Cost-effective High Torque 23L200HT-4.2P 23 1.8 200 294 4.2 0.6 Powerful Cost-effective Standard 23S200ST-1.0 23 1.8 200 60 1.0 4.7 High Speed Standard 23M200ST-1.2 23 1.8 200 84 1.2 4.7 High Speed Standard 23M200ST-2.2 23 1.8 200 84 2.2 1.4 High Speed Standard 23L200ST-1.6 23 1.8 200 125 1.6 2.6 High Speed High Torque 34S200HT-2.0E 34 1.8 200 310 2.0 2.3 CNC Machining Medium duty machine automation High Torque High Torque 34S200HT-4.2P 34 1.8 200 434 4.2 0.5 CNC Machining Medium duty machine automation High Torque High Torque 34M200HT-4.2P 34 1.8 200 860 4.2 0.6 CNC Machining Medium duty machine automation High Torque High Torque 34L200HT-4.5E 34 1.8 200 920 4.5 1.0 CNC Machining Medium duty machine automation High Torque High Torque 34L200HT-6.3P 34 1.8 200 1288 6.3 0.5 CNC Machining Medium duty machine automation High Torque Standard 34S200ST-4.5E 34 1.8 200 180 4.5 0.4 High-speed CNC machining High Speed Standard 34M200ST-4.3E 34 1.8 200 350 4.3 0.4 High-speed CNC machining High Speed Standard 42M200ST-4.0 42 1.8 200 1530 4.0 1.0 Extreme Torque Standard 42L200ST-4.0 42 1.8 200 2195 4.0 1.4 Extreme Torque Standard 42L200ST-6.0 42 1.8 200 2690 6.0 0.6 Extreme Torque Benchtop Machining Instrumentation & 3D Printers Benchtop Machining Instrumentation & 3D Printers Benchtop Machining Instrumentation & 3D Printers Precision Instrumentation Benchtop Machining Precision Instrumentation Benchtop Machining Precision Instrumentation Benchtop Machining Precision Instrumentation Benchtop Machining Precision Instrumentation Benchtop Machining Benchtop CNC and engraving Benchtop CNC and engraving Benchtop CNC and engraving Benchtop CNC and engraving Benchtop CNC Scientific Process Automation Benchtop CNC Scientific Process Automation Benchtop CNC Scientific Process Automation Benchtop CNC Scientific Process Automation Large CNC and machine atuomation Large CNC and machine atuomation Large CNC and machine atuomation The Motion Group Phone: 1-800-424-STEP Fax: 559-325-7117 www.motiongroup.com NEMA Size Step Angle (Deg) Steps per Rev Torque (oz-in) Current (A) Resistance (Ohms)
